Product Summary

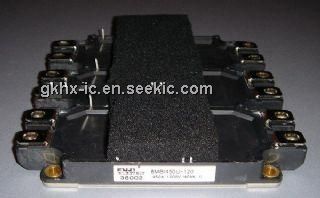

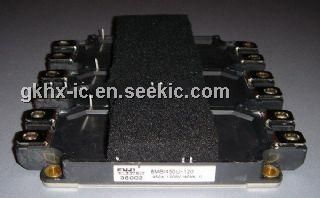

The 6MBI450U-120 is an IGBT Module in U-Series. Applications include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

6MBI450U-120 absolute maximum ratings: (1)Collector-Emitter Voltage(Inverter): 1200V; (2)Gate -Emitter Voltage(Inverter): ± 20V; (3)Collector Power Dissipation(Inverter): 2080W; (4)Collector Current-IC(Inverter): 600A; (5)Collector Current-ICP(Inverter): 1200A; (6)Collector Current--IC(Inverter): 450A; (7)Operating Junction Temperature: +150℃; (8)Storage Temperature: -40 ~ +125℃; (9)Isolation Voltage: AC2500 V.

Features

6MBI450U-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

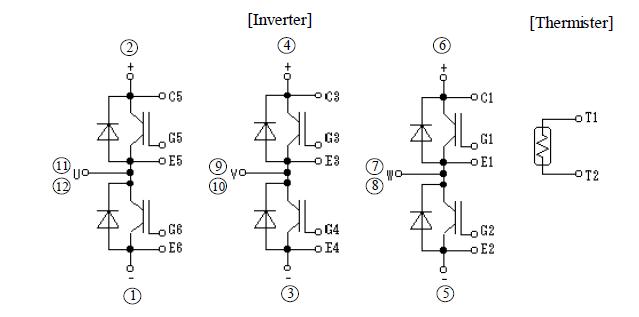

6MBI450U-120 Equivalent Circuit Schematic
