Product Summary

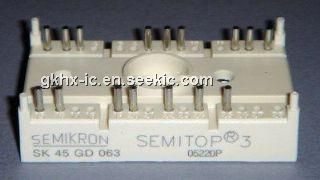

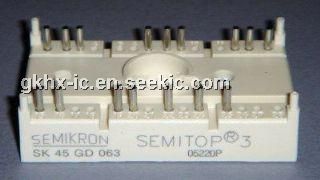

The SK45GD063 is an IGBT Module. It is used for switching, inverter, switched mode power supplies, UPS.
Parametrics
SK45GD063 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 45A; (4)ICM: 30A; (5)Tj: -40 to +150°C; (6)IF: 36A; (7)IFM: 75A; (8)Tstg: -40 to +125°C.
Features
SK45GD063 features: (1)compact design; (2)one screw mounting; (3)heat transfer and isolation through direct copper bonded aluminium oxide ceramic; (4)high short circuit capability; (5)low tail current with low temperature dependence; (6)Ul recognized, file no. E63532.
Diagrams
