Product Summary

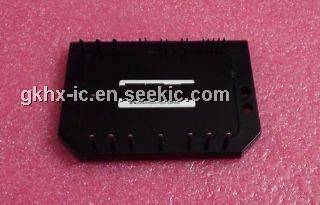

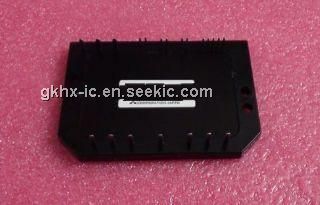

The CM10MD1-12H is a medium power switching use insulated type module. The applications of the CM10MD1-12H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics, UPS.
Parametrics
CM10MD1-12H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector Current, IC: 10A; ICM: 20A; (4)Emitter Current, IE: 10A; IEM: 20A; (5)Maximum collector dissipation, PC: 36W.
Features
CM10MD1-12H features: (1)IC: 10A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module, 3φ Inverter+1φ Converter; (5)UL Recognized, Yellow Card No. E80276 (N), File No. E80271.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM10MD1-12H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
