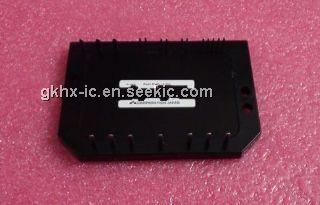

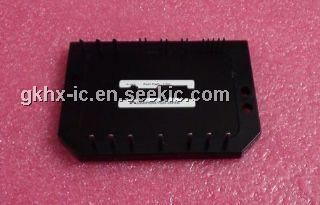

Product Summary

The CM10MD(MDL)-24H is a medium power switching use insulated type module. The applications of the CM10MD(MDL)-24H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics.

Parametrics

CM10MD(MDL)-24H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector Current, IC: 10A; ICM: 20A; (4)Emitter Current, IE: 10A; IEM: 20A; (5)Maximum collector dissipation, PC: 57W.

Features

CM10MD(MDL)-24H features: (1)IC: 10A; (2)VCES: 1200V; (3)Insulated Type; (4)CIB Module 3φ Inverter+3φ Converter+Brake; (5)UL Recognized, Yellow Card No. E80276 (N); File No. E80271.

Diagrams

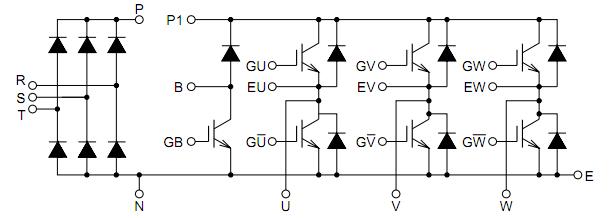

CM10MD(MDL)-24H block diagram
