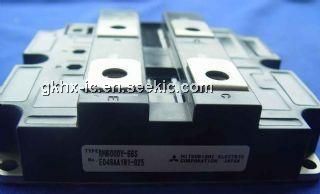

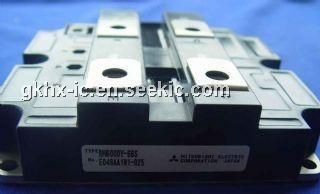

Product Summary

The RM400DY-66S is a high voltage diode module. It is used for Traction drives, High Reliability Converters / Inverters, DC choppers.

Parametrics

RM400DY-66S absolute maximum ratings: (1)Repetitive peak reverse voltage: 3300V; (2)Non-repetitive peak reverse voltage: 3300V; (3)Reverse DC voltage: 2200V; (4)DC forward current: 400A; (5)Surge forward current: 3200A; (6)Current-squared, time integration: 42.7kA2s; (7)Isolation voltage: 6000V; (8)Junction temperature: -40 to +150°C; (9)Operating temperature: -40 to +125°C; (10)Storage temperature: -40 to +125°C.

Features

RM400DY-66S features: (1)IF: 400A; (2)VRRM: 3300V; (3)Insulated Type; (4)2-element in a Pack; (5)Copper Baseplate.

Diagrams

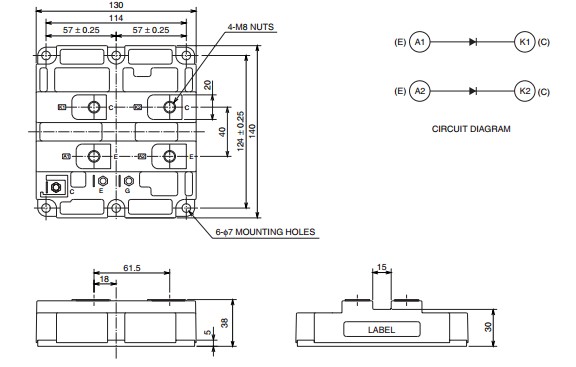

RM400DY-66S package dimensions
