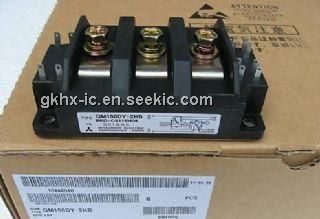

Product Summary

The QM150DY-2HB is a high power switching use insulated type module. The applications of the QM150DY-2HB include AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders.

Parametrics

QM150DY-2HB absolute maximum ratings: (1)Collector-emitter voltage, VCEX(SUS): 1200V; (2)Collector-emitter voltage, VCEX: 1200V; (3)Collector-base voltage, VCBO: 1200V; (4)Emitter-base voltage, VEBO: 7V; (5)Collector current, IC: 150A; (6)Collector reverse current, -IC: 150A; (7)Collector dissipation, PC: 1000W; (8)Base current, DC: 8A; (9)Surge collector reverse current(forward diode current), -ICSM: 1500A; (10)Junction temperature, TJ: -40 to 150℃; (11)Storage temperature, Tstg: -40 to 150℃; (12)Isolation voltage: 2500V.

Features

QM150DY-2HB features: (1)IC Collector current: 150A; (2)VCEX Collector-emitter voltage: 1200V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized, Yellow Card No. E80276 (N); File No. E80271.

Diagrams

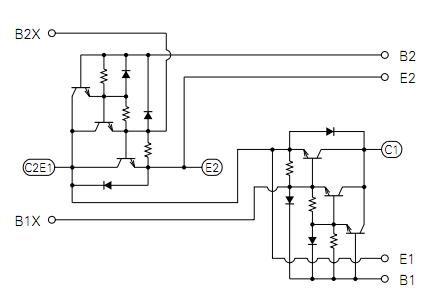

QM150DY-2HB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
QM150DY-2HBK
QM150DY-2HBK

Other


Data Sheet

Negotiable
