Product Summary
The RM60DZ-H is a diode module. It is suitable for AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment.
Parametrics
RM60DZ-H absolute maximum ratings: (1)RMS forward current: 95A; (2)Average forward current: 60A; (3)Surge (non-repetitive)forward current: 1200A; (4)I2t for fusing: 6.0*103A2s; (5)Maximum operating frequency: 1000Hz; (6)Junction temperature: -40 to +150°C; (7)Storage temperature: -40 to +125°C; (8)Isolation voltage: 2500V.
Features
RM60DZ-H features: (1)IF(AV)Average forward current: 60A; (2)VRRM Repetitive peak reverse voltage: 400/800; (3)DOUBLE ARMS; (4)Insulated Type; (5)UL Recognized Yellow Card No. E80276 (N)File No. E80271.

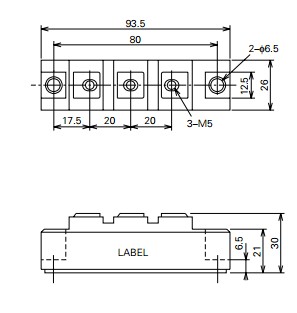

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RM60DZ-H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
