Product Summary

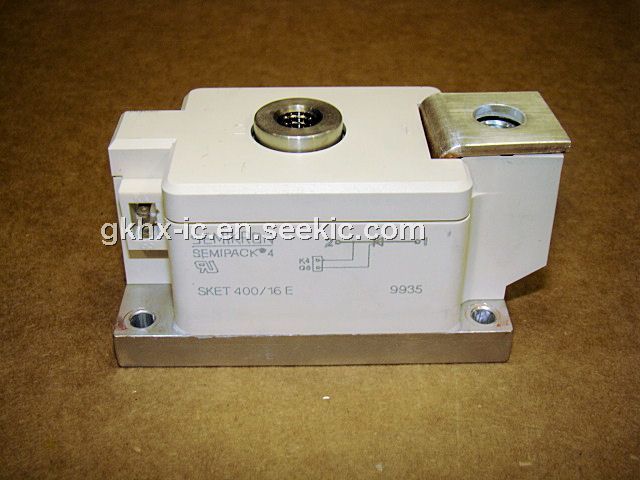

The SKET400 16E is a thyristor module. The applications are DC motor control, temperature control and professional light dimming.

Parametrics

SKET400 16E absolute maximum ratings: (1)VRSM: 1500V; (2)VRRM, VDRM: 1400V; (3)ITRMS=700mA; (4)ITAV=400A; (5)Tvj: -40 to 130℃; (6)Tstg: -40 to 130℃.

Features

SKET400 16E features: (1)heat transfer through aluminium nitride ceramic isolated metal baseplate; (2)precious metal pressure contacts for high reliability; (3)thyristor with amplifying gate; (4)UL recognized, file no E63532.

Diagrams

SKET400 16E circuit diagram
