Product Summary

The SN7404DR is a hex inverter. It contains six independent inverters.

Parametrics

SN7404DR absolute maximum ratings: (1)Supply voltage, VCC (see Note 1): 7V; (2)Input voltage, VI: ’04, ’S04: 5.5V; (3) ’LS04: 7V; (4)Package thermal impedance, θJA (see Note 2): D package: 86℃/W; (5)DB package: 96℃/W; (6)N package: 80℃/W; (7)NS package: 76℃/W; (8)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN7404DR feature: (1)Dependable Texas Instruments Quality and Reliability.

Diagrams

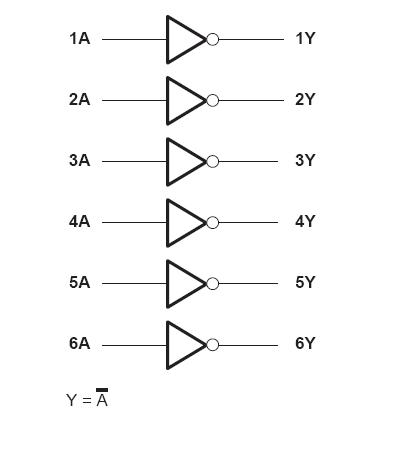

SN7404DR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN7404DR
SN7404DR
Texas Instruments
Inverters HEX INVERTERS
Data Sheet
0-1790: $0.50
1790-2000: $0.48
2000-2500: $0.48
2500-5000: $0.46
SN7404DRG4
SN7404DRG4
Texas Instruments
Inverters Hex inverters
Data Sheet
0-1790: $0.50
1790-2000: $0.48
2000-2500: $0.48
2500-5000: $0.46
SN7404DRE4
SN7404DRE4
Texas Instruments
Inverters HEX INVERTERS
Data Sheet
0-1790: $0.50
1790-2000: $0.48
2000-2500: $0.48
2500-5000: $0.46
