Product Summary
The 74HC374N is a high-speed Si-gate CMOS device. It is pin compatible with low power Schottky TTL (LSTTL). The device is specified in compliance with JEDEC standard no. 7A. The 74HC374N is an octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A clock (CP) and an output enable (OE) input are common to all flip-flops. The 74HC374N will store the state of their individual D-inputs that meet the set-up and hold times requirements on the LOW-to-HIGH CP transition. When OE is LOW, the contents of the 74HC374N are available at the outputs. When OE is HIGH, the outputs go to the high impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops.
Parametrics
74HC374N quick reference data: (1) propagation delay CP to Qn: 15ns; (2) maximum clock frequency: 77MHz; (3) input capacitance: 3.5pF; (4) power dissipation capacitance per flip-flop:17pF.
Features
74HC374N features: (1)3-state non-inverting outputs for bus oriented applications; (2)8-bit positive, edge-triggered register; (3)Common 3-state output enable input; (4)Independent register and 3-state buffer operation; (5)Output capability: bus driver; (6)ICC category: MSI.

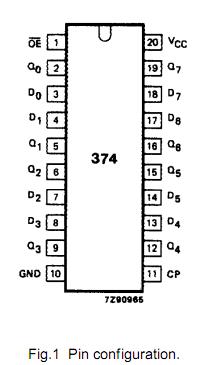

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC374N |
NXP Semiconductors |
Flip Flops OCTAL D F/F 3STATE |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC374N,652 |
NXP Semiconductors |
Flip Flops OCTAL D F/F 3STATE |
Data Sheet |
|
|
||||||||||||
