Product Summary

The 74HC164 is a high-speed Si-gate CMOS device and is pin compatible with Low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC164 is an 8-bit edge-triggered shift register with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (DSA or DSB); either input of the 74HC164 can be used as an active HIGH enable for data entry through the other input.

Parametrics

74HC164 absolute maximum ratings: (1)VCC supply voltage: -0.5 +7 V; (2)IIK input diode current VI < -0.5 V or; (3)VI > VCC + 0.5 V: ±20mA; (4)IOK output diode current VO < -0.5 V or; (5)VO > VCC + 0.5 V: ±20mA; (6)IO output source or sink current VO = -0.5 V to VCC + 0.5 V:±25mA; (7)ICC, IGND VCC or GND current: ±50mA; (8)Tstg storage temperature: -65 +150 ℃.

Features

74HC164 features: (1)Gated serial data inputs; (2)Asynchronous master reset; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V. MM EIA/JESD22-A115-A exceeds 200 V.; (5)Multiple package options; (6)Specified from -40℃ to +85℃ and -40℃ to +125℃.

Diagrams

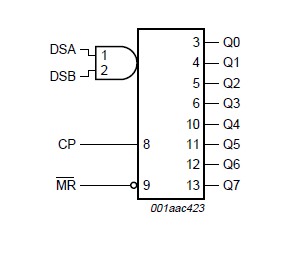

74HC164 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC164BQ,115
74HC164BQ,115

NXP Semiconductors

Counter Shift Registers 8bit 7V 1CIRC

Data Sheet

0-1: $0.13
1-25: $0.12
25-100: $0.11
100-250: $0.11
74HC164D
74HC164D

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER

Data Sheet

Negotiable
74HC164D,652
74HC164D,652

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT

Data Sheet

0-1: $0.22
1-25: $0.18
25-100: $0.15
100-250: $0.13
74HC164D,653
74HC164D,653

NXP Semiconductors

Counter Shift Registers 8BIT SHIFT REGISTER PAR-IN/SERIAL-OUT

Data Sheet

0-1: $0.07
1-25: $0.07
25-100: $0.06
100-250: $0.06
74HC164DB
74HC164DB

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER

Data Sheet

Negotiable
74HC164DB,112
74HC164DB,112

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT

Data Sheet

0-1: $0.46
1-25: $0.40
25-100: $0.35
100-250: $0.31
74HC164DB,118
74HC164DB,118

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT

Data Sheet

0-1: $0.46
1-25: $0.40
25-100: $0.35
100-250: $0.31
74HC164DB-T
74HC164DB-T

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER

Data Sheet

Negotiable
