74HC251

74HC251, high-speed Si-gate CMOS device, SOIC14, 15ns, 3.5pF, 44pF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: 74HC251

Brand:: NXP Semiconductors - nxp | Pack: SOIC | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-28

From Other Seller

Part Number:74HC251
US $0.01 - 6.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

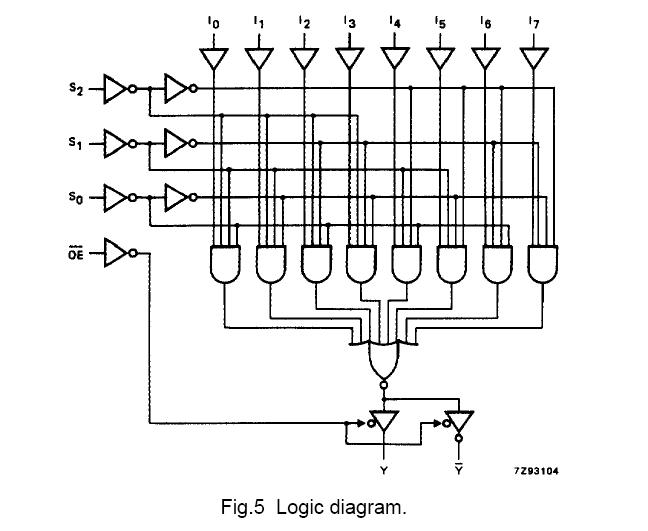

The 74HC251 is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC251 is specified in compliance with JEDEC standard no. 7A. The 74HC251 is the logic implementations of single-pole 8-position switches with the state of three select inputs (S0, S1, S2) controlling the switch positions. Assertion (Y) and negation (Y) outputs are both provided. The output enable input (OE) is active LOW. Both outputs are in the high impedance OFF-state (Z) when the output enable input is HIGH, allowing multiplexer expansion by tying the outputs.

Parametrics

74HC251 quick reference data: (1) propagation delay (CL = 15pF; VCC = 5V) In to Y: 15ns, in toY: 17ns, Sn to Y: 20ns, Sn toY: 21ns; (2) input capacitance: 3.5pF; (3) power dissipation capacitance per package: 44pF.

Features

74HC251 features: (1) True and complement outputs; (2) both outputs are 3-state for further multiplexer expansion; (3) Multifunction capability; (4) Permits multiplexing from n-lines to one line; (5) Output capability: standard; (6) ICC category: MSI.
