Product Summary
The 2MBI300U2B-060 is an IGBT Module U-Series. Applications include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.
Parametrics
2MBI300U2B-060 absolute maximum ratings: (1)Collector-Emitter voltage: 600V; (2)Gate-Emitter voltage: ±20V; (3)Collector Power Dissipation: 1000W; (4)Junction temperature: +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 2500V; (7)Collector current-IC: 300A; (8)Collector current-ICp: 600A; (9)Collector current--IC: 300A; (10)Collector current--IC pulse: 600A.
Features
2MBI300U2B-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure

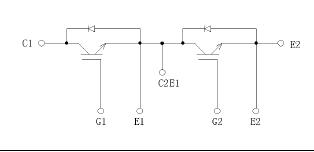

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300U2B-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
