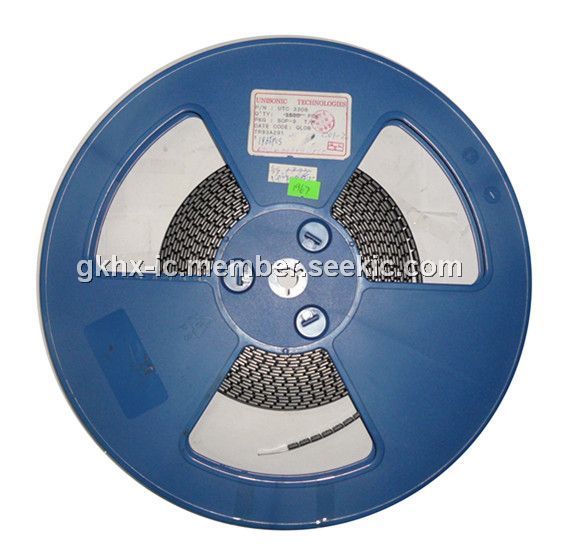

Product Summary

The UTC3308 is a single-supply dual high current operational amplifier capable of driving 150mA, especially for CD ROM, DVD devices.

Parametrics

UTC3308 absolute maximum ratings: (1)Supply Voltage V+: 15V/±7.5V; (2)Differential Input Voltage VID: 15V; (3)Input Voltage VI: -0.3V to +15V; (4)Power Dissipation PD: 300mW; (5)Operating Temperature Topr: -20℃ to +75℃; (6)Storage Temperature Tstg: -40℃ to +125℃.

Features

UTC3308 features: (1) Single Supply; (2) Operating Voltage (+3V to +15V) (±1.5V to ±7.5V); (3) High Output Current (150mA); (4) High Frequency Noise Rejection; (5) Internal Enhanced Frequency Compensation.

Diagrams

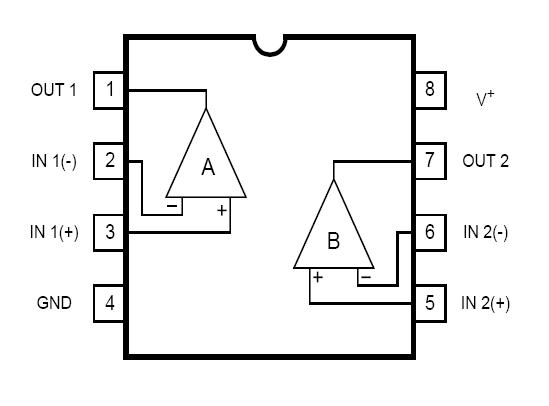

UTC3308 Pin Configuration
