TPS61050YZGR

TPS61050YZGR, 1.2A, high power white LED driver, 2MHz, synchronous boost converter, BGA, 25mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10000 ~ 10000 :	2.00 / Piece

PartNumber:: TPS61050YZGR

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:TPS61050YZGR
US $2.00 - 2.00
Quantity:

piece

Product Summary

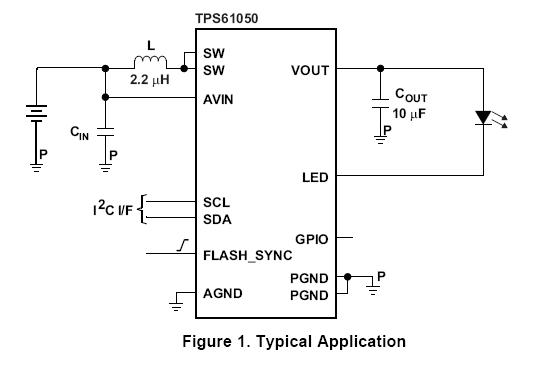

The TPS61050YZGR is a 1.2A high power white LED driver 2MHz synchronous boost converter with I2C compatible interface. It is based on a high-frequency synchronous-boost topology with constant current sink to drive single white LEDs. The TPS61050YZGR uses an inductive fixed-frequency PWM control scheme using small external components, minimizing input ripple current. The applications of the TPS61050YZGR include Camera White LED Torch/Flash for Cell Phones, Smart-Phones and PDAs, Audio Amplifier Power Supply.

Parametrics

TPS61050YZGR absolute maximum ratings: (1)Voltage range on AVIN, VOUT, SW, LED (2):–0.3 to 7V; (2)Voltage range on SCL, SDA, FLASH_SYNC, GPIO, ENVM (2):–0.3 to 7 V; (3)Input current on GPIO: 25mA; (4)TA Operating ambient temperature range (3):–40 to 85℃; (5)TJ (MAX) Maximum operating junction temperature: 150℃; (6)Tstg Storage temperature range: –65 to 150℃; (7)Human body model: 2kV; (8)EraStiDng(4) Charge device model: 1kV; (9)Machine model: 200V.

Features

TPS61050YZGR features: (1)Four Operational Modes; (2)Total Solution Circuit Area＜ 25 mm2; (3)The 2-MHz switching frequency allows the use of; (4)Up to 96% Efficiency; (5)I2C-Compatible Interface up to 400 kbps; (6)Integrated LED Turn-On Safety Timer; (7)Zero Latency TX-Masking Input (TPS61050); (8)Hardware Voltage Mode Selection Input; (9)Integrated ADC for LED VF Monitoring; (10)Integrated Low Light Dimming Mode; (11)LED Disconnect During Shutdown; (12)Open/Shorted LED Protection; (13)Over-Temperature Protection; (14)Available in a 12-Pin NanoFree (CSP) and 10-Pin QFN Packaging.
