SN74HC125D

SN74HC125D, quadruple bus buffer, SO14, -0.5V to 7V, ±35mA, ±70mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10000 ~ 10000 :	0.90 / Piece

PartNumber:: SN74HC125D

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:SN74HC125D
US $0.90 - 0.90
Quantity:

piece

Product Summary

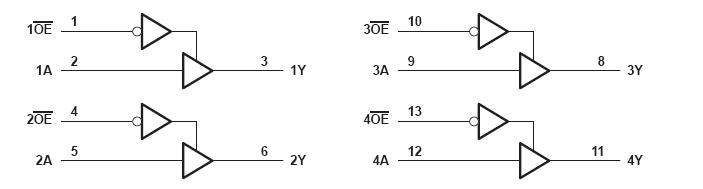

The SN74HC125D is a quadruple bus buffer gate with 3-state outputs. The SN74HC125D features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Parametrics

SN74HC125D absolute maximum ratings: (1)Supply voltage range, VCC: -0.5V to 7V; (2)Input clamp current, IIK (VI＜0 or VI＞VCC): ±20mA; (3)Output clamp current, IOK (VO＜0 or VO＞VCC): ±20mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35mA; (5)Continuous current through VCC or GND: ±70mA; (6)Package thermal impedance, θJA: 86℃/W; (7)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74HC125D features: (1)Wide Operating Voltage Range of 2V to 6V; (2)High-Current 3-State Outputs Interface Directly With System Bus or Can Drive Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 11 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1μA Max.
