Product Summary

The 74HC4066D is a high-speed Si-gate CMOS device. It is specified in compliance with JEDEC standard no. 7A. The 74HC4066D has four independent analog switches. Each switch has two input/output terminals (nY, nZ) and an active HIGH enable input (nE). When nE is LOW the belonging analog switch is turned off.

Parametrics

74HC4066D absolute maximum ratings: (1)DC supply voltage, VCC: -0.5V to +11.0V; (2)DC digital input diode current, ±IIK: 20mA; (3)DC switch diode current, ±ISK: 20mA; (4)DC switch current, ±IIS: 25mA; (5)DC VCC or GND current, ±ICC/±IGND: 50mA; (6)storage temperature range, Tstg: -65℃ to +150℃; (7) Power dissipation per switch, PS: 100mW.

Features

74HC4066D features: (1) Very low “ON” resistance: 50W (typ.) at VCC = 4.5V, 45 W (typ.) at VCC = 6.0V, 35 W (typ.) at VCC = 9.0V; (2) Output capability: non-standard; (3) ICC category: SSI.

Diagrams

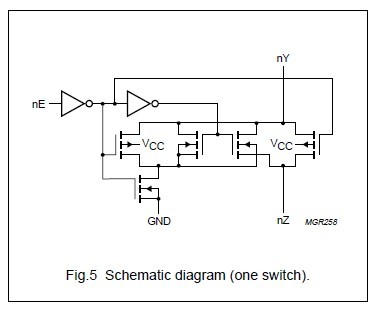

74HC4066D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC4066D
74HC4066D

NXP Semiconductors

Analog Switch ICs QUAD BILATERL SWITCH

Data Sheet

Negotiable
74HC4066D,652
74HC4066D,652

NXP Semiconductors

Analog Switch ICs QUAD BILATERL SWITCH

Data Sheet

0-1: $0.07
1-25: $0.06
25-100: $0.06
100-250: $0.05
74HC4066DB,118
74HC4066DB,118

NXP Semiconductors

Analog Switch ICs QUAD BILATERAL

Data Sheet

0-1: $0.27
1-25: $0.23
25-100: $0.19
100-250: $0.15
74HC4066DB,112
74HC4066DB,112

NXP Semiconductors

Analog Switch ICs QUAD BILATERAL

Data Sheet

0-1: $0.14
1-25: $0.13
25-100: $0.11
100-250: $0.09
74HC4066D,653
74HC4066D,653

NXP Semiconductors

Analog Switch ICs QUAD BILATERAL SWTCH

Data Sheet

0-1: $0.07
1-25: $0.06
25-100: $0.06
100-250: $0.05
74HC4066DB
74HC4066DB

NXP Semiconductors

Analog Switch ICs QUAD BILATERAL SWITCH

Data Sheet

Negotiable
74HC4066DB-T
74HC4066DB-T

NXP Semiconductors

Analog Switch ICs QUAD BILATERAL SWITCH

Data Sheet

Negotiable
