Product Summary

The 74HCT00D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HCT00D is specified in compliance with JEDEC standard no. 7A. It provides the 2-input NAND function.

Parametrics

74HCT00D absolute maximum ratings: (1)propagation delay nA, nB to nY (CL = 15pF; VCC = 5V): 10ns; (2)input capacitance: 3.5pF; (3)power dissipation capacitance per gate: 22pF.

Features

74HCT00D features: (1) Complies with JEDEC standard no. 8-1A; (2) ESD protection: HBM EIA/JESD22-A114-A exceeds 2000V, MM EIA/JESD22-A115-A exceeds 200 V; (3) Specified from -40℃ to +85℃ and -40℃ to +125℃.

Diagrams

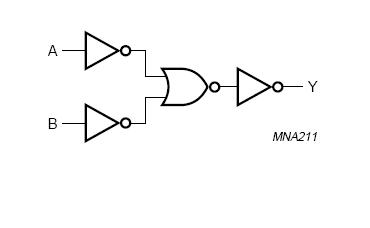

74HCT00D block diagram
