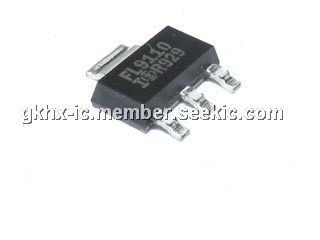

IRFL9110

IRFL9110, power MOSFET, SOP, 100V, 0.31mJ, -8.8A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: IRFL9110

Brand:: International Rectifier - IR | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-07

From Other Seller

Part Number:IRFL9110
US $0.01 - 6.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFL9110 is a power MOSFET. The IRFL9110 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-223 package is designed for surface-mount using vapor phase, infrared, or wave soldering techniques. Its unique package design allows for easy automatic pick-and-place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of greater than 1.25 W is possible in a typical surface mount application.

Parametrics

IRFL9110 absolute maximum ratings: (1)Drain-Source Voltage VDS: 100V; (2)Gate-Source Voltage VGS: ±20V; (3)Continuous Drain Current VGS at -10V TC = 25℃ ID: -1.1A; (4)TC = 100℃: -0.69A; (5)Pulsed Drain Current IDM: -8.8A; (6)Linear Derating Factor: 0.025W/℃; (7)Linear Derating Factor (PCB Mount)e: 0.017W/℃; (8)Single Pulse Avalanche Energy EAS: 100mJ; (9)Avalanche Current IAR: -1.1A; (10)Peak Diode Recovery dV/dtc EAR: 0.31mJ; (11)Maximum Power Dissipation TC = 25℃ PD: 3.1W; (12)Maximum Power Dissipation (PCB Mount)e TA = 25℃: 2.0W; (13)Peak Diode Recovery dV/dtc dV/dt: -5.5V/ns; (14)Operating Junction and Storage Temperature Range TJ, Tstg: -55℃ to + 150℃; (15)Soldering Recommendations (Peak Temperature) for 10s 300d ℃.

Features

IRFL9110 features: (1)Surface Mount; (2)Available in Tape and Reel; (3)Dynamic dV/dt Rating; (4)Repetitive Avalanche Rated; (5)P-Channel; (6)Fast Switching; (7)Ease of Paralleling; (8)Lead (Pb)-free Available.
