Product Summary

The ADC08138CIWM is an 8-bit successive approximation A/D converter with serial I/O and configurable input multiplexers with up to 8 channels. The serial I/O is configured to comply with the NSC MICROWIRE. Serial data exchange standard for easy interface to the COPS. The ADC08138CIWM can easily interface with standard shift registers or microprocessors. The applications of the ADC08138CIWM include digitizing automotive sensors, Process control/monitoring, remote sensing in noisy environments, and embedded diagnostics.

Parametrics

ADC08138CIWM absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Voltage at Inputs and Outputs: -0.3V to VCC + 0.3V; (3)Input Current at Any Pin: ±5mA; (4)Package Input Current: ±20mA; (5)Power Dissipation at TA = 25℃: 800mW; (6)ESD Susceptibility: 1500V; (7)Soldering Information: 215℃; (8)Storage Temperature: -65℃ to +150℃.

Features

ADC08138CIWM features: (1) Serial digital data link requires few I/O pins; (2) Analog input track/hold function; (3)4- or 8-channel input multiplexer options with address logic; (4) On-chip 2.5V band-gap reference (±2% over temperature guaranteed); (5) No zero or full scale adjustment required; (6) TTL/CMOS input/output compatible; (7)0V to 5V analog input range with single 5V power supply.

Diagrams

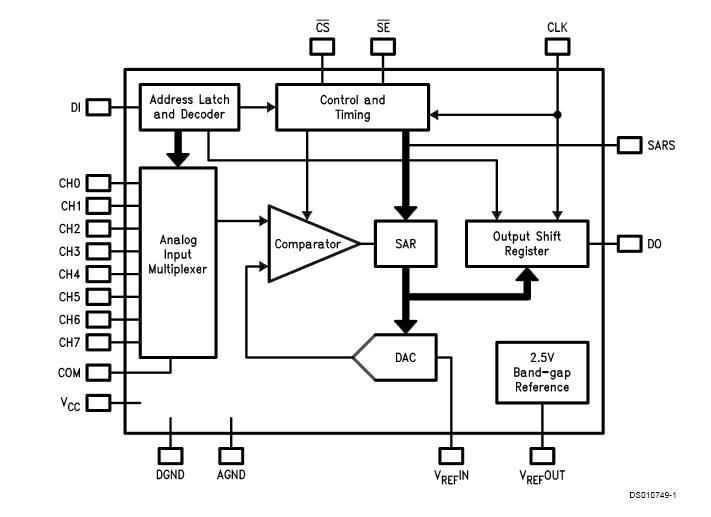

ADC08138CIWM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADC08138CIWM
ADC08138CIWM


IC ADC 8BIT HS SERIAL I/O 20SOIC

Data Sheet

Negotiable
ADC08138CIWMX
ADC08138CIWMX


IC ADC 8BIT HS SERIAL I/O 20SOIC

Data Sheet

Negotiable
