Product Summary
The 74HC14PW is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC14PW is specified in compliance with JEDEC standard no. 7A. The 74HC14PW provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The applications of the 74HC14PW include Wave and pulse shapers, Astable multivibrators, Monostable multivibrators.
Parametrics
74HC14PW absolute maximum ratings: (1) propagation delay nA to nY (CL = 15pF; VCC = 5V): 12ns for HC, 17ns for 17ns; (2) input capacitance: 3.5pF; (3) power dissipation capacitance per gate: 7pF for HC, 8pF for HCT.
Features
74HC14PW features: (1) Applications: Wave and pulse shapers, Astable multivibrators, Monostable multivibrators; (2) Complies with JEDEC standard no. 7A; (3) ESD protection: HBM EIA/JESD22-A114-A exceeds 2000V, MM EIA/JESD22-A115-A exceeds 200V; (4) Specified from -40℃ to +85℃ and -40℃ to +125℃.

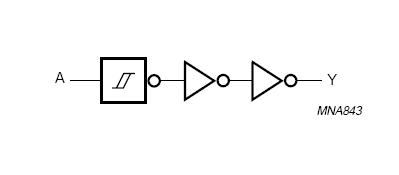

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC14PW |
NXP Semiconductors |
Inverters HEX INVERTER SCHMITT TRIGGER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC14PW,112 |
NXP Semiconductors |
Inverters HEX INVERTER SCHMITT |
Data Sheet |
|
|
||||||||||||
|
74HC14PW,118 |
NXP Semiconductors |
Inverters HEX INVERTER SCHMITT TRIGGER |
Data Sheet |
|
|
||||||||||||
