Product Summary

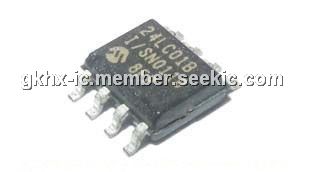

The 24LC01BI-SN is a 1Kbit Electrically Erasable PROM. The 24LC01BI-SN is organized as one block of 128 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.8V with standby and active currents of only 1μA and 1mA, respectively. The 24LC01BI-SN also has a page write capability for up to 8 bytes of data. It is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages and is also available in the 5-lead SOT-23 package.

Parametrics

24LC01BI-SN absolute maximum ratings: (1) VCC: 6.5V; (2) All inputs and outputs w.r.t. VSS: -0.3V to VCC +1.0V; (3) Storage temperature: 65℃ to +150℃; (4) Ambient temperature with power applied: -65℃ to +125℃; (5) ESD protection on all pins: ≥4kV.

Features

24LC01BI-SN features: (1)ingle-supply with operation down to 1.8V; (2)Low-power CMOS technology: 1mA active current typical, 1μA standby current typical (I-temp); (3)Organized as 1 block of 128 bytes (1x128x8); (4)2-wire serial interface bus, I2C compatible; (5)Schmitt Trigger inputs for noise suppression; (6)Output slope control to eliminate ground bounce; (7)100 kHz (24AA01) and 400 kHz (24LC01B) compatibility; (8)Self-timed write cycle (including auto-erase); (9)Page write buffer for up to 8 bytes; (10)2 ms typical write cycle time for page write; (11)Hardware write-protect for entire memory; (12)Can be operated as a serial ROM; (13)Factory programming (QTP) available; (14)ESD protection>4,000V; (15)1,000,000 erase/write cycles; (16)Data retention>200 years; (17)8-lead PDIP, SOIC, TSSOP and MSOP packages; (18)5-lead SOT-23 package; (19)Standard and Pb-free finishes; (20)Available for extended temperature ranges: Industrial (I): -40℃ to +85℃; (21)Automotive (E): -40℃ to +125℃.

Diagrams

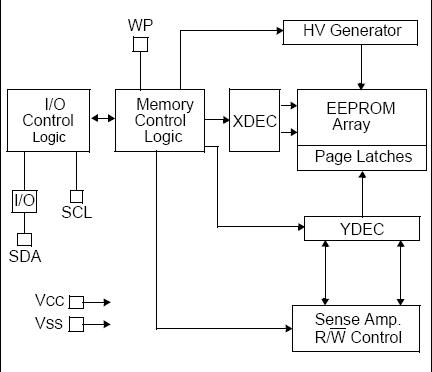

24LC01BI-SN block diagram
