IRF7401

IRF7401, HEXFET Power MOSFET, SMD, 10A, 2.5W, ±12V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~2.00

PartNumber:: IRF7401

Brand:: International Rectifier - IR | Pack: SMD | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-07

From Other Seller

Part Number:IRF7401
US $0.01 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
STK795-810

US $12.00 - 16.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF7401 is a HEXFET Power MOSFET. The IRF7401 utilizes advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. The SO-8 has been modified through a customized leadframe for enhanced thermal characteristics and multiple-die capability making the IRF7401 ideal in a variety of power applications. With these improvements, multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra red, or wave soldering techniques. Power dissipation of greater than 0.8W is possible in a typical PCB mount application.

Parametrics

IRF7401 absolute maximum ratings: (1)ID @ TA = 25℃ 10 Sec. Pulsed Drain Current, VGS @ 4.5V: 10A; (2)ID @ TA = 25℃ Continuous Drain Current, VGS @ 4.5V: 8.7A; (3)ID @ TA = 70℃ Continuous Drain Current, VGS @ 4.5V: 7.0A; (4)IDM Pulsed Drain Current: 35A; (5)PD @TA = 25℃ Power Dissipation: 2.5W; (6)Linear Derating Factor: 0.02W/℃; (7)VGS Gate-to-Source Voltage: ±12V; (8)dv/dt Peak Diode Recovery dv/dt: 5.0V/ns; (9)TJ, TSTG Junction and Storage Temperature Range: -55 to + 150℃.

Features

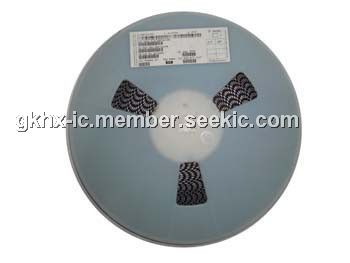

IRF7401 features: (1) Generation V Technology; (2)Ultra Low On-Resistance; (3)N-Channel Mosfet; (4)Surface Mount; (5)Available in Tape & Reel; (6)Dynamic dv/dt Rating; (7)Fast Switching.
