Product Summary

The 74HC4053DB is a high-speed Si-gate CMOS device and is pin compatible with the HEF4053B. It is specified in compliance with JEDEC standard no. 7A. The 74HC4053DB is triple 2-channel analog multiplexer/demultiplexer with a common enable input (E). Each multiplexer/demultiplexer has two independent inputs/outputs (nY0 and nY1), a common input/output (nZ) and three digital select inputs (Sn). The applications of the 74HC4053DB include analog multiplexing and demultiplexing, Digital multiplexing and demultiplexing, Signal gating.

Parametrics

74HC4053DB absolute maximum ratings: (1) supply voltage: -0.5V to +11.0 V; (2) input clamping current: ±20mA at VI < -0.5 V or VI > VCC + 0.5 V; (3) switch clamping current: ±20mA at VS < -0.5 V or VS > VCC + 0.5 V.

Features

74HC4053DB features: (1)Low ON resistance: 80 W (typical) at VCC - VEE = 4.5 V, 70 W (typical) at VCC - VEE = 6.0 V, 60 W (typical) at VCC - VEE = 9.0 V; (2)Logic level translation: To enable 5 V logic to communicate with ±5 V analog signals; (3)Typical break before make built in; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-C exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V; (6)Multiple package options; (7)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.

Diagrams

74HC4053DB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

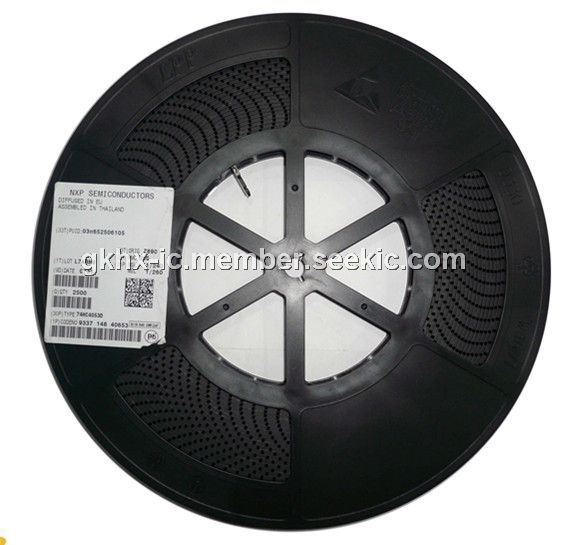

74HC4053DB
74HC4053DB

NXP Semiconductors

Multiplexer Switch ICs TRIPLE 2-CHANNEL MUX/DEMUX

Data Sheet

Negotiable
74HC4053DB,112
74HC4053DB,112

NXP Semiconductors

Multiplexer Switch ICs TRIPLE 2-CHANNEL

Data Sheet

0-1: $0.53
1-25: $0.41
25-100: $0.36
100-250: $0.31
74HC4053DB,118
74HC4053DB,118

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers TRIPLE 2-CHANNEL

Data Sheet

0-1: $0.48
1-25: $0.42
25-100: $0.37
100-250: $0.32
74HC4053DB-T
74HC4053DB-T

NXP Semiconductors

Multiplexer Switch ICs TRIPLE 2-CHANNEL MUX/DEMUX

Data Sheet

Negotiable
