Product Summary
The ICM7216DIPI is a CMOS Oscillator controller. The ICM7216DIPI consists of a high stability oscillator and frequency divider providing 4 control outputs suitable for frequency counter timebases. Specifically, when used as a frequency counter timebase in conjunction with the ICM7216DIPI frequency counter, the four outputs provide the gating signals for the count window, store function, reset function and multiplex frequency reference. The applications of the ICM7216DIPI include System timebases, Oscilloscope calibration generators, Marker generator strobes, and frequency counter controllers.
Parametrics
ICM7216DIPI absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Input Voltages: Equal to or less than supply voltage; (3)Output Voltage: V+ to V-; (4)Output Currents: 25mA; (5)Power Dissipation: 200mW; (6)Operating Temperature Range: -20 to +85℃; (7)Storage Temperature Range: -55 to +125℃.
Features
ICM7216DIPI features: (1)Stable HF oscillator; (2)Low Power Dissipation ≤5mW with 5V supply; (3)Low impedance output drivers ≤100ohms; (4)Count windows of 10/100ms or 0.1/1sec.

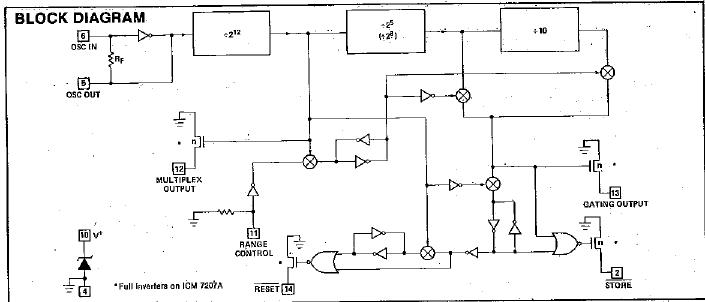

Diagrams
