Product Summary
The HA17393 is a Dual Comparator. It is designed for car use and control system use. The HA17393 provides wide voltage range with single power source, and the change of supply current is small, because it is independent of the supply voltage. The HA17393 can be widely applied, such as limit comparator, simple analog/digital converter, pulse/square wave/time delay generator, wide range VCO, MOS clock timer, multivibrator, high voltage logic gate, etc.
Parametrics
HA17393 absolute maximum ratings: (1)Supply voltage VCC: 36 V; (2)Dfferential input voltage VIN(diff): VCC V; (3)Input voltage VIN: -0.3 to +VCC V; (4)Output short current: constant; (5)Power dissipation: 570mW; (6)Operating temperature Topr:–20℃ to 75℃; (7)Storage temperature: -55℃ to +125℃.
Features
HA17393 features: (1)Wide supply voltage: 2 to 36V; (2)Very low supply current: 0.8mA; (3)Small input bias: 25nA; (4)Small input offset current: 3nA; (5)Small input offset voltage: 2mV; (6)Common mode input voltage range including ground.; (7)Small output saturation voltage: 1mV (5μA) 70mV (1mA); (8)Output voltage is compatible with CMOS logic system.

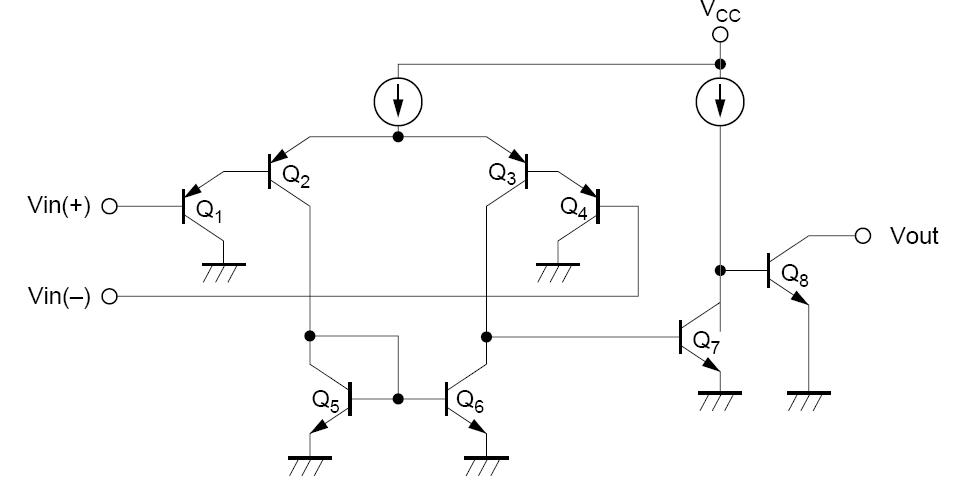

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HA17393A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HA17393B |
Other |
|
Data Sheet |
Negotiable |
|
||||
