Product Summary

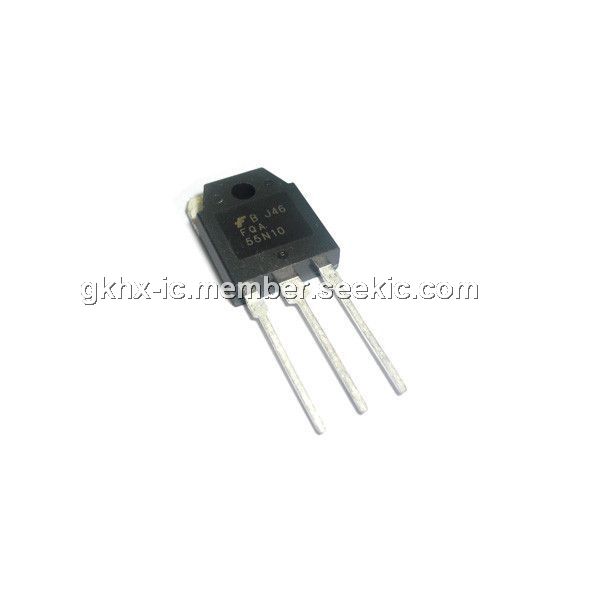

The FQA55N10 is a 100V N-Channel MOSFET. The FQA55N10 is produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. The FQA55N10 is well suited for low voltage applications such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control.
Parametrics
FQA55N10 absolute maximum ratings: (1)VDSS Drain-Source Voltage: 100V; (2)ID Drain Current - Continuous (TC = 25℃): 61A; (3)Continuous (TC = 100℃): 43.1A; (4)IDM Drain Current - Pulsed (Note 1): 244A; (5)VGSS Gate-Source Voltage: ±25V; (6)EAS Single Pulsed Avalanche Energy (Note 2): 1100mJ; (7)IAR Avalanche Current (Note 1): 61A; (8)EAR Repetitive Avalanche Energy (Note 1): 19mJ; (9)dv/dt Peak Diode Recovery dv/dt (Note 3): 6.0V/ns; (10)PD Power Dissipation (TC = 25℃): 190W; (11)Derate above 25℃: 1.27 W/℃; (12)TJ, TSTG Operating and Storage Temperature Range: -55 to +175℃; (13)TL Maximum lead temperature for soldering purposes, 1/8" from case for 5 seconds: 300℃.
Features
FQA55N10 features: (1)61A, 100V, RDS(on) = 0.026Ω@VGS = 10V; (2)Low gate charge ( typical 75nC); (3)Low Crss ( typical 130pF); (4)Fast switching; (5)100% avalanche tested; (6)Improved dv/dt capability; (7)175℃ maximum junction temperature rating.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FQA55N10 |
Fairchild Semiconductor |
MOSFET 100V N-Channel QFET |
Data Sheet |
Negotiable |
|
|||||||||||||
