Product Summary

The AT24C0BA-10PU-2.7 is a 2-Wire Serial EEPROM. It provides 1024 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 128 words of 8 bits each. The AT24C0BA-10PU-2.7 is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C0BA-10PU-2.7 is available in space saving 8-pin PDIP, 8-pin MSOP, 8-pin TSSOP, and 8-pin JEDEC SOIC packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Parametrics

AT24C0BA-10PU-2.7 absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4) Maximum Operating Voltage: 6.25V; (5) DC Output Current: 5.0mA.

Features

AT24C0BA-10PU-2.7 features: (1)Low Voltage and Standard Voltage Operation: 5.0 (VCC = 4.5V to 5.5V), 2.7 (VCC = 2.7V to 5.5V), 2.5 (VCC = 2.5V to 5.5V), 1.8 (VCC = 1.8V to 5.5V); (2)Internally Organized 128 x 8; (3)2-Wire Serial Interface; (4)Bidirectional Data Transfer Protocol; (5)100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility; (6)4-Byte Page Write Mode; (7)Self-Timed Write Cycle (10 ms max); (8)High Reliability; (9)Endurance: 1 Million Write Cycles; (10)Data Retention: 100 Years; (11)ESD Protection: >3000V; (12)Automotive Grade and Extended Temperature Devices Available; (13)8-Pin PDIP, 8-Pin MSOP, 8-Pin TSSOP and 8-Pin JEDEC SOIC Packages.

Diagrams

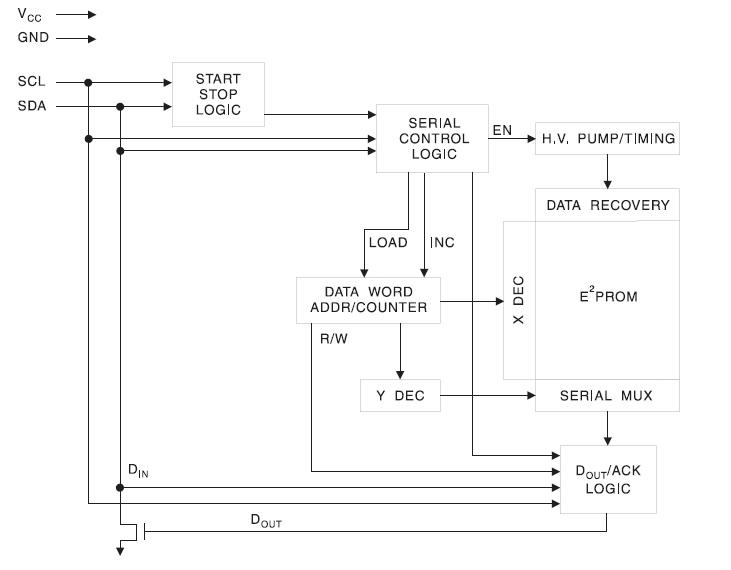

AT24C0BA-10PU-2.7 block diagram
