Product Summary

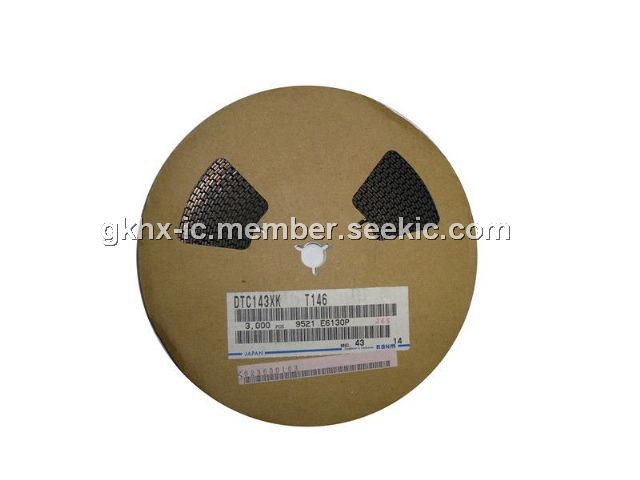

The DTC143XKT146 is a digital transistor.

Parametrics

DTC143XKT146 absolute maximum ratings: (1)Supply voltage, VCC: 50V; (2)Input voltage, VIN: -7 to +20V; (3)Output current, IO: 100mA; IC: 100mA; (4)Power dissipation, Pd: 200mW; (5)Junction temperature, TJ: 150℃; (6)Storage temperature, TSTG: -55 to +150℃.

Features

DTC143XKT146 features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation marking device design easy.

Diagrams

DTC143XKT146 dimension
