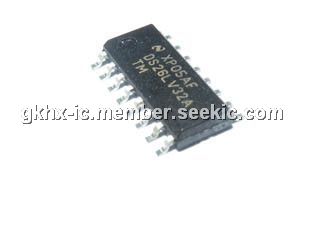

DS26LV32ATM

Product Summary

The DS26LV32ATM is a high speed quad differential CMOS receiver that meets the requirements of both TIA/EIA-422-B and ITU-T V.11. The CMOS DS26LV32ATM features typical low static ICC of 9mA which makes it ideal for battery powered and power conscious applications. The TRI-STATE enables, EN and EN*, allow the DS26LV32ATM to be active High or active Low. The enables are common to all four receivers. The receiver output (RO) is guaranteed to be High when the inputs are left open. The receiver can detect signals as low as ±200 mV over the common mode range of ±10V. The receiver outputs (RO) are compatible with TTL and LVCMOS levels.

Parametrics

DS26LV32ATM absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7V; (2)Enable Input Voltage (EN, EN*): -0.5V to VCC +0.5V; (3)Receiver Input Voltage (VID: RI+, RI.): ±14V; (4)Receiver Input Voltage (VCM: RI+, RI.): ±14V; (5)Receiver Output Voltage (RO): -0.5V to VCC +0.5V; (6)Receiver Output Current (RO): ±25 mA Maximum; (7)Maximum Package Power Dissipation @ +25℃ M Package: 1190mW; (8)Derate M Package 9.8 mW/℃ above +25℃; (9)Derate W Package 7.3 mW/℃ above +25℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature Range Soldering (4 Sec.): +260℃; (12)ESD Ratings (HBM, 1.5 kΩ, 100 pF) Receiver Inputs and Enables: ≥ 6.5kV; (13)Other Pins: ≥2kV.

Features

DS26LV32ATM features: (1)Low Power CMOS design (30 mW typical); (2)Interoperable with existing 5V RS-422 networks; (3)Industrial and Military Temperature Range; (4)Conforms to TIA/EIA-422-B (RS-422) and ITU-T V.11 Recommendation; (5)3.3V Operation; (6)±7V Common Mode Range @ VID = 3V; (7)±10V Common Mode Range @ VID = 0.2V; (8)Receiver OPEN input failsafe feature; (9)Guaranteed AC Parameter: Maximum Receiver Skew: 4 ns, Maximum Transition Time: 10 ns; (10)Pin compatible with DS26C32AT; (11)32 MHz Toggle Frequency; (12)＞6.5k ESD Tolerance (HBM); (13)Available in SOIC and Cerpack Packaging; (14)Standard Microcircuit Drawing (SMD) 5962-98585.

Diagrams
