Product Summary

The CC2511F16RSPR is a true low-cost 2.4GHz system-on-chip (SoC) designed for lowpower wireless applications. The CC2511F16RSPR combines the excellent performance of the state-of-the-art RF transceiver CC2500 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations. The applications of the CC2511F16RSPR include 2400 to 2483.5 MHz ISM/SRD band systems, Consumer electronics, Wireless keyboard and mouse, Wireless voice-quality audio, RF enabled remote controls, Wireless sports and leisure equipment, Low power telemetry, CC2511Fx: USB dongles.

Parametrics

CC2511F16RSPR absolute maximum ratings: (1)Supply voltage (VDD) -0.3 to 3.9V; (2)Voltage on any digital pin .0.3 VDD + 0.3,max 3.9V; (3)Voltage on the pins RF_P, RF_N and DCOUPL: -0.3 2.0 V; (4)Voltage ramp-up rate: 120kV/μs; (5)Input RF level: 10dBm; (6)Storage temperature range: -50 to 150℃; (7)Solder reflow temperature: 260℃; (8)ESD CC2510Fx: 750 V; (9)ESD CC2510Fx: 500 V; (10)ESD CC2511x: 750 V; (11)ESD CC2511x: 500 V.

Features

CC2511F16RSPR features: (1)High-performance RF transceiver based on the market-leading CC2500; (2)Excellent receiver selectivity and blocking performance; (3)High sensitivity (-103 dBm at 2.4 kBaud); (4)Programmable data rate up to 500 kBaud; (5)Programmable output power up to 1 dBm for all supported frequencies; (6)Frequency range: 2400 - 2483.5 MHz; (7)Digital RSSI / LQI support.

Diagrams

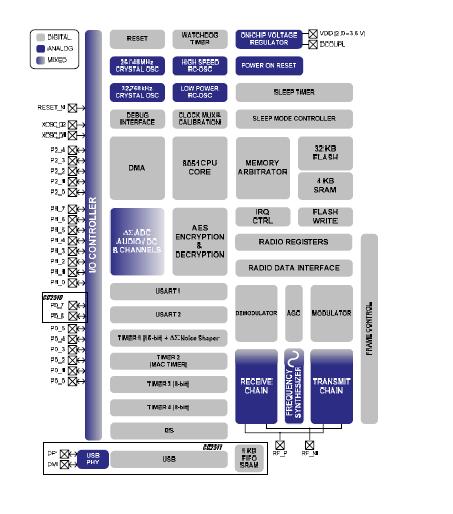

CC2511F16RSPR block diagram
