CC2431RTCR

Product Summary

The CC2431RTCR is a true System-On-Chip (SOC) for wireless sensor networking ZigBee/IEEE 802.15.4 solutions. The chip includes a location detection hardware module that can be used in so-called blind nodes (i.e. nodes with unknown location) to receive signals from nodes with known location’s. Based on this the location engine calculates an estimate of a blind node’s position. The CC2431RTCR enables ZigBee nodes to be built with very low total bill-of-material costs. The applications of the CC2431RTCR include ZigBee systems, 2.4 GHz IEEE 802.15.4 systems, Home/building automation, Industrial Control and Monitoring, Low power wireless sensor networks, Access Control, PC peripherals, Set-top boxes and remote controls, Consumer Electronics, Container/Vehicle Tracking, Active RFID, Inventory Control.

Features

CC2431RTCR features: (1)Location Engine calculates the location of a node in a network; (2)High performance and low power 8051 microcontroller core; (3)2.4 GHz IEEE 802.15.4 compliant RF transceiver (industry leading CC2420 radio core); (4)ZigBee protocol stack (Z-Stack from Texas Instruments includes support for CC2431’s location engine.; (5)Excellent receiver sensitivity and robustness to interferers; (6)128 KB in-system programmable flash; (7)8 KB RAM, 4 KB with data retention in all power modes; (8)Powerful DMA functionality; (9)Very few external components; (10)Only a single crystal needed for mesh network systems; (11)Low current consumption (RX: 27 mA, TX: 27mA, microcontroller running at 32 MHz); (12)Only 0.5μA current consumption in power down mode, where external interrupts or the RTC can wake up the system; (13)0.3μA current consumption in power-down mode, where external interrupts can wake up the system; (14)Very fast transition times from low-power modes to active mode enables ultra low average power consumption in low duty-cycle; (15)systems; (16)CSMA/CA hardware support; (17)Wide supply voltage range (2.0 V ?3.6 V); (18)Digital RSSI/ LQI support; (19)Battery monitor and temperature sensor; (20)ADC with up to eight inputs and configurable resolution; (21)128-bit AES security coprocessor.

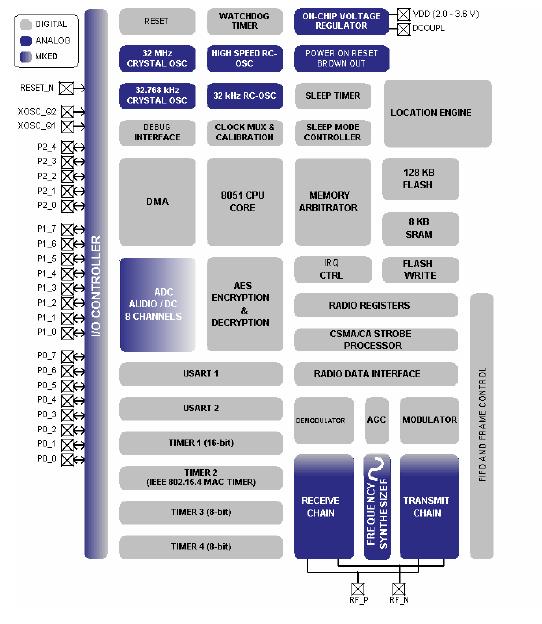

Diagrams
