Product Summary
The AZ431AR-ATRE1 is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. The AZ431AR-ATRE1 features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make them ideal substitutes for Zener diodes in applications such as switching power supply, charger and other adjustable regulators. The AZ431AR-ATRE1 is of 40V voltage type. Its output voltage can be set to any value between VREF (2.5V) and 36V. The AZ431AR-ATRE1 precision reference is offered in two bandgap tolerance: 0.4% and 0.8%. The applications of the AZ431AR-ATRE1 include Charger, Voltage Adapter, Switching Power Supply, Graphic Card, and Precision Voltage Reference.
Parametrics
AZ431AR-ATRE1 absolute maximum ratings: (1)IKA (Max): 100mA; (2)IKA (Min): 0.4mA; (3)VOUT / VREF Initial Tol. : 0.4%; (4)VOUT (Max): 36V; (5)VOUT (Min): 2.5V; (6)ZKA (Typ): 0.15Ω; (7)Temp Coeff. (Typ): 20PPM/℃; (8)Operating Temperature (Min): -40℃; (9)Operating Temperature (Max): +125℃.
Features
AZ431AR-ATRE1 features: (1)Programmable Precise Output Voltage from 2.5V to 36V; (2)Very Accurate Reference Voltage: 0.15% Typical; (3)High Stability under Capacitive Load; (4)Low Temperature Deviation: 4.5mV Typical; (5)Low Equivalent Full-range Temperature Coefficient with 20PPM/℃ Typical; (6)Low Dynamic Output Resistance: 0.2Ω Typical; (7)Sink Current Capacity from 1mA to 100 mA; (8)Low Output Noise; (9)Wide Operating Range of -40 to 125℃.

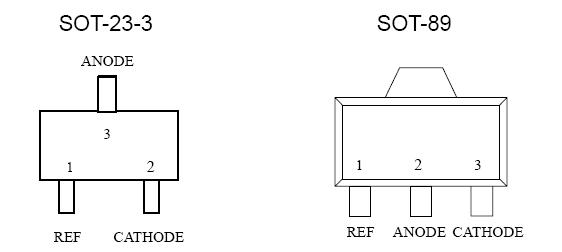

Diagrams
