Product Summary
The ATMEGA8A is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8A achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA8A absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4) Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5) Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0mA; (7)DC Current VCC and GND Pins: 300.0mA.
Features
ATMEGA8A features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)I/O and Packages: 23 Programmable I/O Lines; 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF; (3)Operating Voltages: 2.7 - 5.5V; (4)Speed Grades: 0 - 16 MHz; (5)Power Consumption at 4MHz, 3V, 25℃: Active: 3.6mA; Idle Mode: 1.0mA; Power-down Mode: 0.5μA; (6) Advanced RISC Architecture: 130 Powerful Instructions – Most Single-clock Cycle Execution; 32 × 8 General Purpose Working Registers; Fully Static Operation; Up to 16 MIPS Throughput at 16 MHz; On-chip 2-cycle Multiplier.

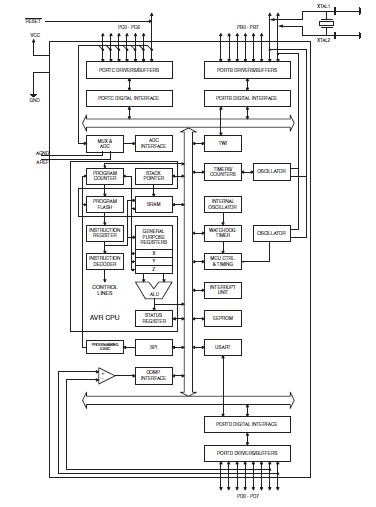

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATMEGA8A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
ATMEGA8A-AN |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB FL 512B EE 1KB SRAM 16 MHZ GRN |
Data Sheet |
|
|
||||||||||||
 |
ATMEGA8A-AU |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB, 512B EE 16MHz 1KB SRAM |
Data Sheet |
|
|
||||||||||||
 |
ATMEGA8A-MN |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 1KB SRAM-16MHz 105C |
Data Sheet |
|
|
||||||||||||
|
ATMEGA8A-AUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 1KB SRAM-16MHz |
Data Sheet |
|
|
||||||||||||
|
ATMEGA8A-ANR |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 1KB SRAM-16MHz 105C |
Data Sheet |
|
|
||||||||||||
|
ATMEGA8A-MU |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB, 512B EE 16MHz 1KB SRAM |
Data Sheet |
|
|
||||||||||||
 |
ATMEGA8A-PU |
Atmel |
8-bit Microcontrollers (MCU) AVR 8KB, 512B EE 16MHz 1KB SRAM |
Data Sheet |
|
|
||||||||||||
