Product Summary

The AP2410 is a high performance, isolated DC/DC converter module with highest power density. State of the art SMDtechnology guarantees a product with very high reliability. I/O-isolation of 1500 VDC together with conducted noise compliance to EN 55022-A and FCC, level A makes the AP2410 ideal product for communications, battery powered mobile equipments and distributed power system applications.

Parametrics

AP2410 absolute maximum ratings: (1)Operating Temperature ranges:–25 to + 75℃ (derating 3%/℃ above 60℃); (2)Humidity (non condensing): 90 % rel H max.; (3)Reliability, calculated MTBF (MIL-HDBK-217 E) ＞1.2 Mio. h @ + 25℃; (4)Isolation voltage Input/Output 12/24 VDC models 750 VDC; (5)48 VDC models 1’500 VDC; (6)Isolation capacity Input/Output 2.2 nF typ; (7)Isolation resistance Input/Output (500 VDC)＞1000 M Ohm; (8)Switching frequency (fixed) 400 kHz typ.

Features

AP2410 features: (1)Highest Power Density in 50 x 25 x 10 mm (2" x 1" x 0.4") Package; (2)Wide 2 : 1 Input Range; (3)Very high Efficiency up to 87%; (4)Input Filter meets EN 55022, Class A and FCC, Level A without external Components; (5)Shielded Metal Case with insulated Baseplate; (6)Industry Standard Pinout; (7)High Reliability, MTBF＞1.2 Mio. h; (8)2 Year Product Warranty.

Diagrams

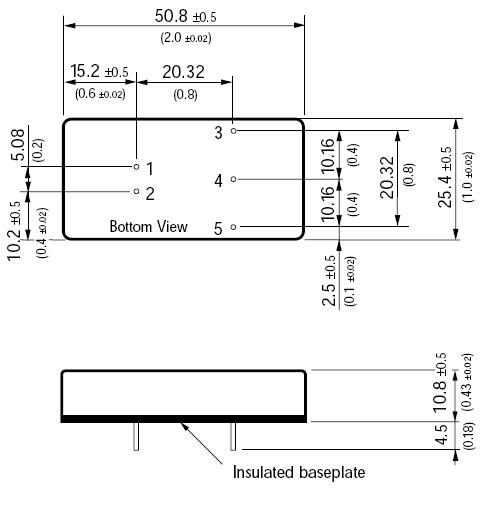

AP2410 dimension
