Product Summary

The AMS1084CD is an adjustable and fixed voltage regulator designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1084CD is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The applications of the AMS1084CD include High Efficiency Linear Regulators, Post Regulators for Switching Supplies, Microprocessor Supply, Battery Chargers, Constant Current Regulators, Notebook/Personal Computer Supplies and Portable Instrumentation.

Parametrics

AMS1084CD absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input Voltage: 15V; (3)Operating Junction Temperature Range, Control Section: 0℃ to 125℃; Power Transistor: 0℃ to 150℃; (4)Storage temperature: - 65℃ to +150℃; (5)Soldering information: 300℃.

Features

AMS1084CD features: (1)Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V; (2)Output Current of 5A; (3)Operates Down to 1V Dropout; (4)Line Regulation: 0.015%; (5)Load Regulation: 0.1%; (6)TO-220, TO-263 and TO-252 packages available.

Diagrams

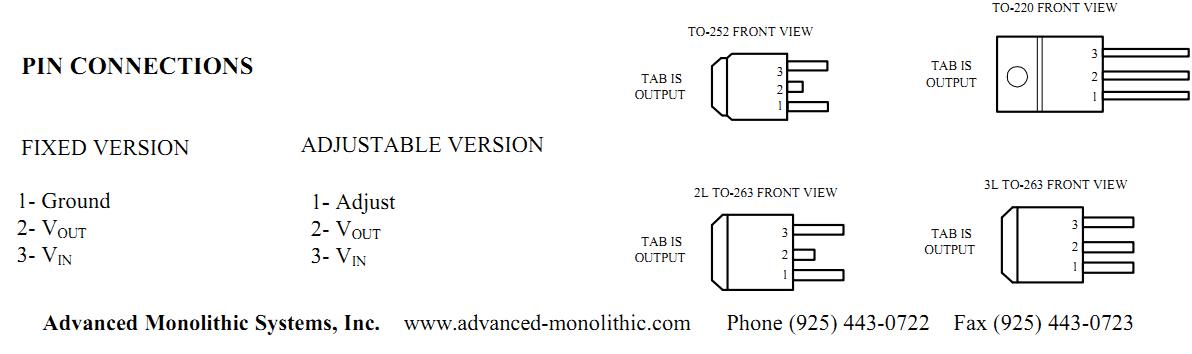

AMS1084CD Pin Configuration
