AT24C01B

Two-wire Serial EEPROM, DIP, –1.0V to +7.0V, 5.0mA, AT24C01B, 6.25V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: AT24C01B

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-02

From Other Seller

Part Number:AT24C01B
US $0.01 - 6.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

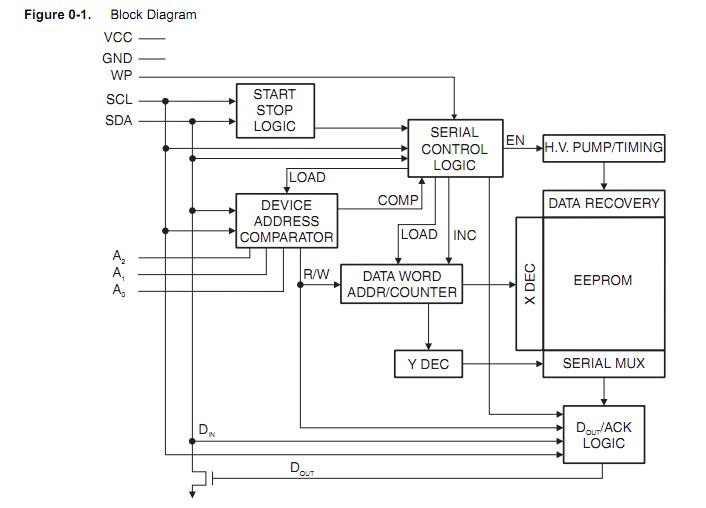

The AT24C01B is a Two-wire Serial EEPROM. The AT24C01B provides 1024 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 128 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C01Bis available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead SOT23, 8-lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire serial interface. In addition, the AT24C01B is available in 1.8V (1.8V to 5.5V) version.

Parametrics

AT24C01B absolute maximum ratings: (1)Operating Temperature:–55 to +125℃; (2)Storage Temperature:–65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: –1.0V to +7.0V; (4) Maximum Operating Voltage: 6.25V; (5) DC Output Current: 5.0mA.

Features

AT24C01B features: (1)Low-voltage and Standard-voltage Operation: 1.8 (VCC = 1.8V to 5.5V); (2)Internally Organized 128 × 8 (1K); (3)Two-wire Serial Interface; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression; (5)Bidirectional Data Transfer Protocol; (6)1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility; (7)Write Protect Pin for Hardware Data Protection; (8)8-byte Page (1K) Write Modes; (9)Partial Page Writes Allowed; (10)Self-timed Write Cycle (5 ms max); (11)High-reliability; (12)8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead SOT23, 8-lead TSSOP and 8-ball dBGA2 Packages; (13)Lead-free/Halogen-free; (14)Die Sales: Wafer Form and Tape and Reel.
