Product Summary
The 74LVC32APW is a quad 2-input OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of the 74LVC32APW as translators in mixed 3.3 V and 5 V applications.
Parametrics
74LVC32APW absolute maximum ratings: (1)VCC, supply voltage: 3.6V; (2)VI, input voltage: 5.5V; (3)VO, output voltage: VCC V; (4)Tamb, ambient temperature: +125℃; (5)Input transition rise and fall rate: 20ns/V.
Features
74LVC32APW features: (1)5V tolerant inputs for interlacing with 5V logic; (2)Wide supply voltage range from 1.2V to 3.6V; (3)CMOS low power consumption; (4)Direct interface with TTL levels; (5)Complies with JEDEC standard; (6)ESD protection; (7)Specified from -40 to +85℃ and -40 to +125℃.

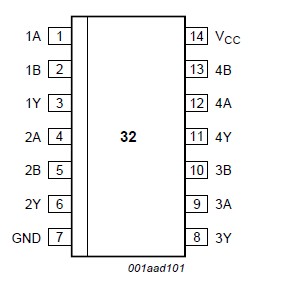

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LVC32APW,112 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT OR GATE |
Data Sheet |
|
|
||||||||||||
|
74LVC32APW,118 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-IN OR GATE |
Data Sheet |
|
|
||||||||||||
