Product Summary

The 74HC165 is a high-speed Si-gate CMOS device that complies with JEDEC standard no. 7A. It is pin compatible with Low-power Schottky TTL (LSTTL). The 74HC165 is an 8-bit parallel-load or serial-in shift register with complementary serial outputs (Q7 and Q7) available from the last stage. When the parallel load (PL) input is LOW, parallel data from the D0 to D7 inputs are loaded into the register asynchronously.

Parametrics

74HC165 absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7 V; (2)IIK, input clamping current VI < -0.5 V or VI > VCC + 0.5 V: ±20mA max; (3)IOK, output clamping current VO < -0.5 V or VO > VCC + 0.5 V: ±20mA max; (4)IO, output current -0.5 V < VO < VCC + 0.5 V: ±25mA max; (5)ICC, supply current: - 50mA max; (6)IGND ground current: -50mA min; (7)Tstg, storage temperature: -65 +150 ℃.

Features

74HC165 features: (1) Asynchronous 8-bit parallel load; (2) Synchronous serial input; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM JESD22-A114E exceeds 2000 V; MM JESD22-A115-A exceeds 200 V; (5)Specified from -40 ℃ to +85℃ and from -40 ℃ to +125 ℃.

Diagrams

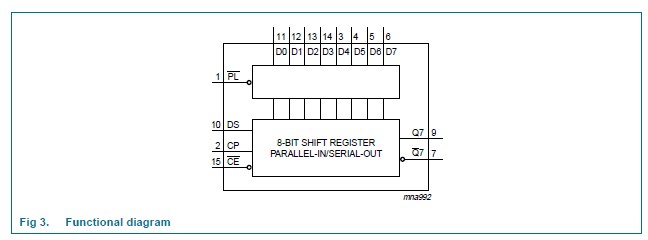

74HC165 block diagram
