Product Summary

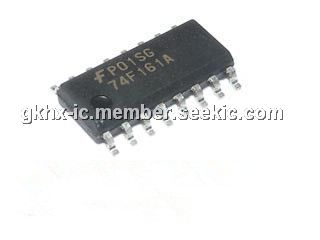

The 74F161A is a 4-bit binary counter. The 74F161A features an internal carry look-ahead and can be used for high-speed counting. Synchronous operation of the 74F161A is provided by having all flip-flops clocked simultaneously on the positive-going edge of the clock. The clock input is buffered. The outputs of the counters may be preset to High or Low level. A Low level at the Parallel Enable (PE) input disables the counting action and causes the data at the D0–D3 inputs to be loaded into the counter on the positive-going edge of the clock (provided that the setup and hold requirements for PE are met). Preset takes place regardless of the levels at Count Enable (CEP, CET) inputs.
Parametrics
74F161A absolute maximum ratings: (1)VCC Supply voltage:–0.5 to +7.0V; (2)VIN Input voltage:–0.5 to +7.0V; (3)IIN Input current:–30 to +5mA; (4)VOUT Voltage applied to output in High output state:–0.5 to VCC V; (5)IOUT Current applied to output in Low output state: 40mA; (6)T Operating free air temperature range; (7)Commercial range: 0 to +70℃; (8)Tamb free-Industrial range:–40 to +85℃; (9)Tstg Storage temperature range:–65 to +150℃.
Features
74F161A features: (1)Synchronous counting and loading; (2)Two count enable inputs for n-bit cascading; (3)Positive edge-triggered clock; (4)Asynchronous Master Reset (74F161A); (5)Synchronous Reset (74F163A); (6)High speed synchronous expansion; (7)Typical count rate of 130MHz; (8)Industrial range (-40℃ to +85℃) available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74F161APC |
Fairchild Semiconductor |
Counter ICs Syn 4-Bit Binary Ctr |
Data Sheet |
Negotiable |
|
||||
|
74F161APC_Q |
Fairchild Semiconductor |
Counter ICs Syn 4-Bit Binary Ctr |
Data Sheet |
Negotiable |
|
||||
 |
74F161ASC_Q |
Fairchild Semiconductor |
Counter ICs Syn 4-Bit Binary Ctr |
Data Sheet |
Negotiable |
|
||||
 |
74F161ASJ_Q |
Fairchild Semiconductor |
Counter ICs Syn 4-Bit Binary Ctr |
Data Sheet |
Negotiable |
|
||||
|
74F161ASJX |
Fairchild Semiconductor |
Counter Shift Registers Syn 4-Bit Binary Ctr |
Data Sheet |
Negotiable |
|
||||
|
74F161ASJ |
Fairchild Semiconductor |
Counter Shift Registers Syn 4-Bit Binary Ctr |
Data Sheet |
Negotiable |
|
||||
|
74F161ASC |
Fairchild Semiconductor |
Counter Shift Registers Syn 4-Bit Binary Ctr |
Data Sheet |
Negotiable |
|
||||
 |
74F161A |
Other |
|
Data Sheet |
Negotiable |
|
||||
