Product Summary

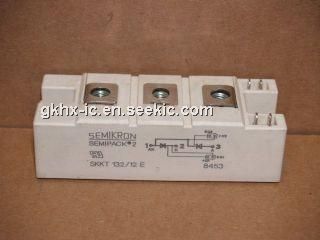

The SKKT132 12E is a thyristor diode module.

Parametrics

SKKT132 12E absolute maximum ratings: (1)Itav, sin.180, Tc=85(100)℃: 137(96)A; (2)Id, P3/180, Ta=45℃, B2/B6: 77/100A; (3)Id, P3/180F, Ta=35℃, B2/B6: 170/200A; (4)Irms, P3/180F, Ta=35℃, W1/W3: 240/3*163A; (5)Itsm, Tvj=25℃, 10ms: 4700A; (6)Itsm, Tvj=125℃, 10ms: 4000A; (7)I2t, Tvj=25℃, 8.3 to 10ms: 110000A; (8)I2t, Tvj=125℃, 8.3 to 10ms: 80000A; (9)Vt, Tvj=25℃, It=500A: max. 1.8V; (10)Vt(TO), Tvj=125℃: max. 1V.

Features

SKKT132 12E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized.

Diagrams

SKKT132 12E circuit diagram
