Product Summary

The RM30TA-H is a diode module. It is suitable for AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment.

Parametrics

RM30TA-H absolute maximum ratings: (1)RMS forward current: 75A; (2)Average forward current: 60A; (3)Surge (non-repetitive)forward current: 1000A; (4)I2t for fusing: 4.2*103A2s; (5)Maximum operating frequency: 1000Hz; (6)Junction temperature: -40 to +150°C; (7)Storage temperature: -40 to +125°C; (8)Isolation voltage: 2500V.

Features

RM30TA-H features: (1)IF(AV)Average forward current: 75A; (2)VRRM Repetitive peak reverse voltage: 400/800V; (3)DOUBLE ARMS; (4)Insulated Type; (5)UL Recognized Yellow Card No. E80276 (N)File No. E80271.

Diagrams

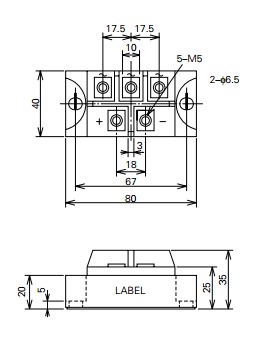

RM30TA-H package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RM30TA-H
RM30TA-H

Other


Data Sheet

Negotiable
