Product Summary

The CM15MD1-12H is a medium power switching use flat-base type module. The applications of the CM15MD1-12H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics, UPS.

Parametrics

CM15MD1-12H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector Current, IC: 15A; ICM: 30A; (4)Emitter Current, IE: 15A; IEM: 30A; (5)Maximum collector dissipation, PC: 45W.

Features

CM15MD1-12H features: (1)IC: 15A; (2)VCES: 600V; (3)Insulated Type; (4)CIB Module 3φ Inverter+1φ Converter; (5)UL Recognized Yellow Card No. E80276 (N); File No. E80271.

Diagrams

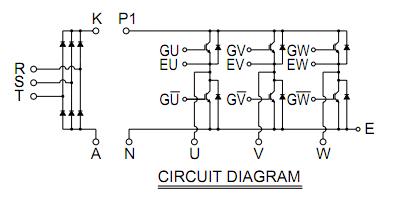

CM15MD1-12H block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

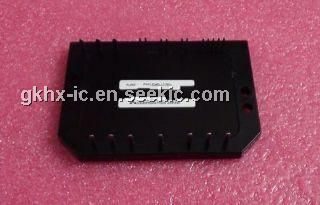

CM15MD1-12H
CM15MD1-12H

Other


Data Sheet

Negotiable
