Product Summary
The MCD162-16IO1 is a thyristor module. Its applications include Motor control, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control and Contactless switches.
Parametrics
MCD162-16IO1 absolute maximum ratings: (1)ITRMS, IFRMS: 300 A; (2)(dv/dt)cr: 1000 V/μs; (3)PGAV: 8W; (4)TVJ: -40~+125℃; (5)TVJM: 125℃; (6)Tstg: -40~+125℃; (7)VISOL: 3000 V~; (8)Weight: 125g
Features
MCD162-16IO1 features: (1)International standard package; (2)Direct copper bonded Al2O3-ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.

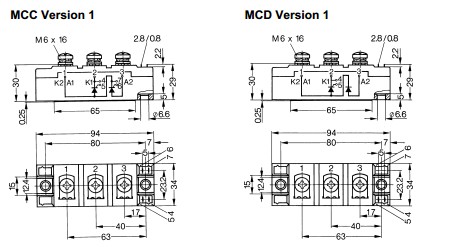

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCD162-16io1 |
Ixys |
Discrete Semiconductor Modules 162 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MCD132 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MCD132-08io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 800V |
Data Sheet |
Negotiable |
|
||||
|
MCD132-12io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
|
MCD132-14io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1400V |
Data Sheet |
Negotiable |
|
||||
|
MCD132-16io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
|
MCD132-18io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1800V |
Data Sheet |
Negotiable |
|
||||
