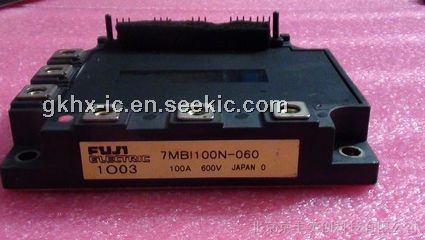

Product Summary
The 7MBI100N-060 is an IGBT(600V/100A) module.
Parametrics
7MBI100N-060 absolute maximum ratings: (1)Collector-Emitter Voltage(inverter): 600V; (2)Gate -Emitter Voltage(inverter): ±20V; (3)Collector Current-IC(inverter): 100A; (4)Collector Current-IC PULSE(inverter): 200A; (5)Collector Current--IC PULSE(inverter): 150A; (6)Collector Power Dissipation(inverter): 400W; (7)Operating Junction Temperature: +150℃; (8)Storage Temperature: -40 ~ +125℃; (9)Isolation Voltage: 2500V.
Features
7MBI100N-060 features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function ( ~ 3 Times Rated Current ).

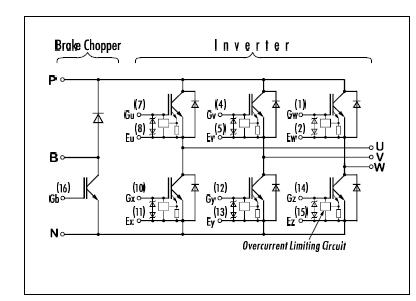

Diagrams
