Product Summary

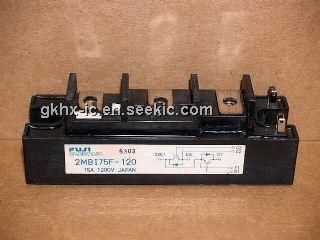

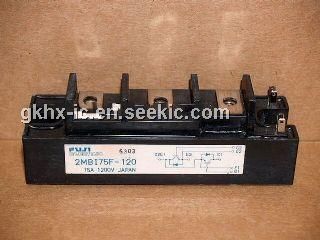

The 2MBI75F-120 is an IGBT module. Applications include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines such as welding machines.

Parametrics

2MBI75F-120 absolute maximum ratings: (1)collecter-emitter voltage: 1200V; (2)gare-emitter voltage: ±20V; (3)MAX. power dissipation: 540W; (4)operating temperature: +150℃; (5)storage temperature: -40 to +125℃; (6)net. weight: 230g; (7)isolation voltage: 2500V.

Features

2MBI75F-120 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

Diagrams

2MBI75F-120 equilavelent circuit schematic
