Product Summary

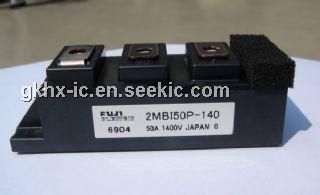

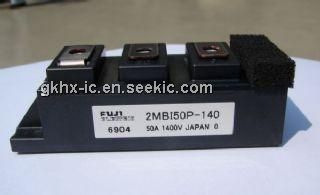

The 2MBI50P-140 is an IGBT module. Applications include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2MBI50P-140 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Max. Power Dissipation: 400W; (4)Junction temperature: +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 2500V.
Features
2MBI50P-140 features: (1)Square SC SOA at 10 x IC; (2)Simplified Parallel Connection; (3)Narrow Distribution of Characteristics; (4)High Short Circuit Withstand-Capability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI50P-140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
