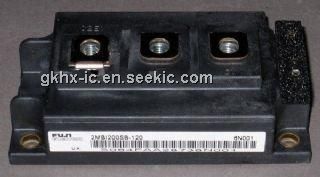

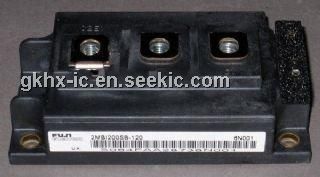

Product Summary

The 2MBI200SB-120 is an IGBT module. Applications include inverters for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines such as welding machines.

Parametrics

2MBI200SB-120 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector Power Dissipation: 1500W; (4)Junction temperature: +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 2500V; (7)Collector current-IC: 300A; (8)Collector current-ICp: 600A; (9)Collector current--IC: 200A; (10)Collector current--IC pulse: 400A.

Features

2MBI200SB-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

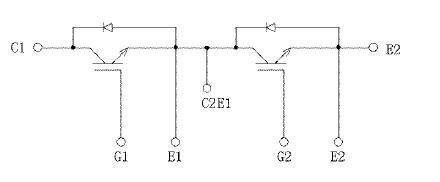

2MBI200SB-120 equilavelent circuit schematic
