Product Summary

The QM200HA-H is a high power switching use insulated type module. The applications of the QM200HA-H include AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders.

Parametrics

QM200HA-H absolute maximum ratings: (1)Collector-emitter voltage, VCEX(SUS): 600V; (2)Collector-emitter voltage, VCEX: 600V; (3)Collector-base voltage, VCBO: 600V; (4)Emitter-base voltage, VEBO: 7V; (5)Collector current, IC: 200A; (6)Collector reverse current, -IC: 200A; (7)Collector dissipation, PC: 1250W; (8)Base current, IB: 12A; (9)Surge collector reverse current (forward diode current), -ICSM: 2000A; (10)Junction temperature, TJ: -40 to 150; (11)Storage temperature, Tstg: -40 to 125℃; (12)Isolation voltage, Visol: 2500V.

Features

QM200HA-H features: (1)IC, Collector current: 200A; (2)VCEX, Collector-emitter voltage: 600V; (3)hFE, DC current gain: 75; (4)Insulated Type; (5)UL Recognized, Yellow Card No. E80276 (N), File No. E80271.

Diagrams

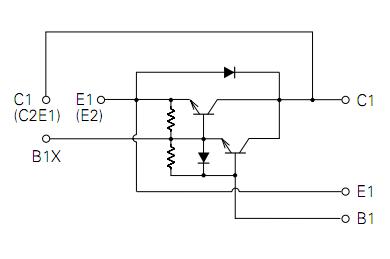

QM200HA-H block diagram
