Product Summary
The XCV8005HQ is a Field-Programmable Gate Array gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XCV8005HQ offers densities ranging from 15,000 to 200,000 system gates. System performance is supported up to 200 MHz.
Parametrics
XCV8005HQ absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to 3.0 V; (2)Supply voltage relative to GND: –0.5 to 4.0 V; (3)Input reference voltage: –0.5 to 3.6 V; (4)Input voltage relative to GND(3) 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (5)Voltage applied to 3-state output 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (6)Storage temperature (ambient): –65 to +150 ℃; (7)Junction temperature: +125 ℃.
Features
XCV8005HQ features: (1)Second generation ASIC replacement technology: Densities as high as 5,292 logic cells with up to 200,000 system gates, Streamlined features based on Virtex FPGA architecture; (2)System level features: Fully PCI compliant, Low-power segmented routing architecture, Full readback ability for verification/observability; (3)Versatile I/O and packaging: Pb-free package options, Low-cost packages available in all densities.

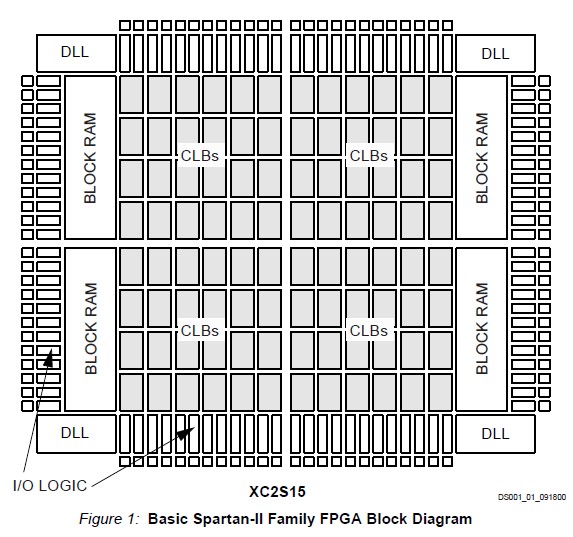

Diagrams
